Grusher Proxy Service

Working from build_352

As development of the new proxy module for Grusher is now in active progress, another important step has been taken toward building a truly flexible and scalable infrastructure.

Core Operating Principle

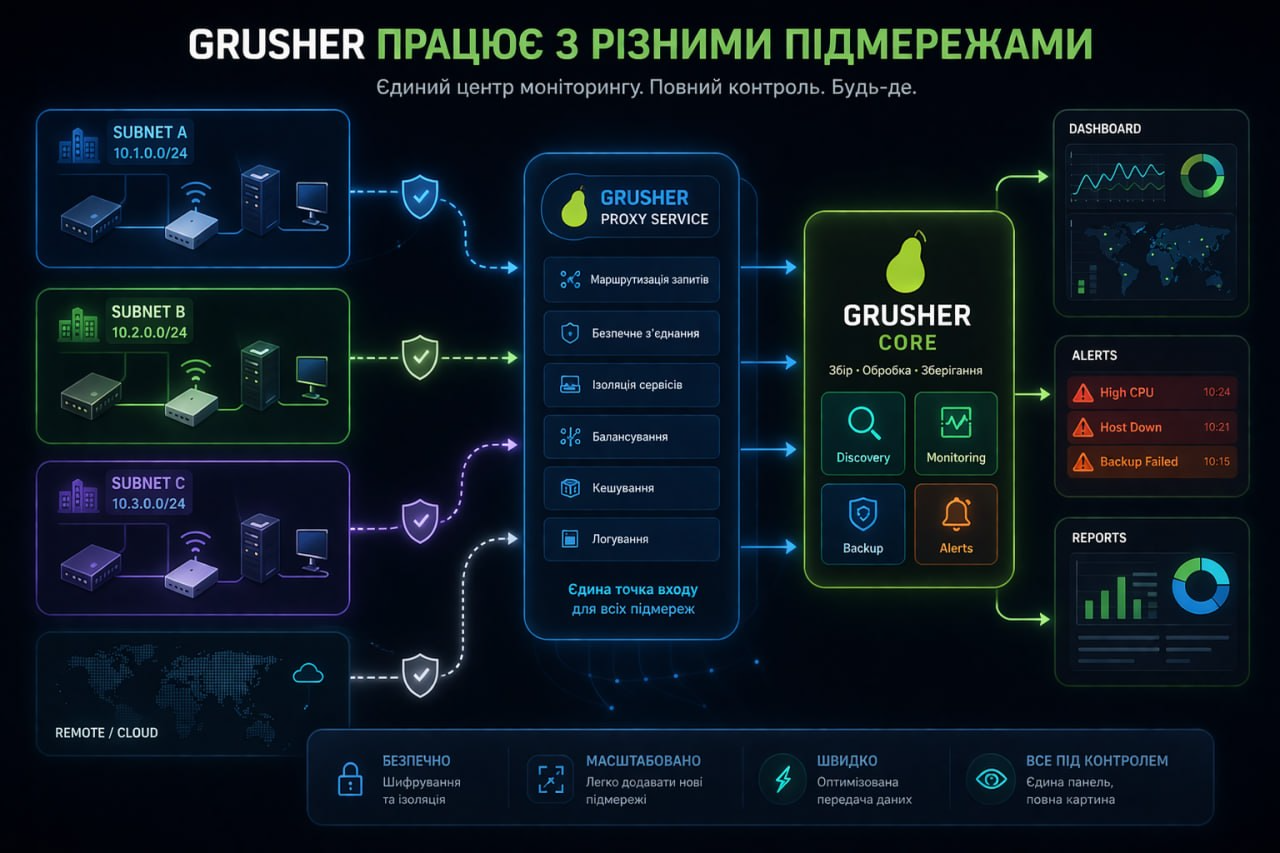

When Grusher needs to retrieve data via SNMP, it does not directly contact the network equipment. Instead, it sends an encrypted request to the Grusher Proxy. The proxy performs the SNMP operation on the server side and returns an encrypted response.

The proxy module will bring several key capabilities:

• Proxying SNMP (get/walk/set) and Ping requests to remote subnets
• Isolation of system components
• Improved scalability and the ability to balance load
• Simplified integration with external services
• Support for request caching, logging, and access control

Essentially, it adds an extra layer of abstraction that makes Grusher significantly more powerful.

Installing the Service with systemd

To run the Grusher Proxy Service reliably in the background as a systemd service on Linux, follow these steps:

1. Create the service file

sudo nano /etc/systemd/system/grusher-proxy-service.service

sudo nano /etc/systemd/system/grusher-proxy-service.service

2. Insert the following content:

[Unit]
Description=Grusher SNMP and Ping proxy Service
After=network.target

[Service]
# Path to the binary and working directory (where grusher_proxy_config.json is located)
ExecStart=/opt/grusher_proxy/grusher-proxy-service
WorkingDirectory=/opt/grusher_proxy/

# Automatic restart on failure
Restart=always
RestartSec=3

# Logging
StandardOutput=append:/opt/grusher_proxy/log/snmp-service.log
StandardError=append:/opt/grusher_proxy/log/snmp-service.err

[Install]
WantedBy=multi-user.target

3. Manage the service

sudo systemctl daemon-reload                  # Reload systemd configuration
sudo systemctl enable grusher-proxy-service   # Enable autostart on boot
sudo systemctl start grusher-proxy-service    # Start the service
sudo systemctl stop grusher-proxy-service     # Stop the service
sudo systemctl restart grusher-proxy-service  # Restart the service
sudo systemctl status grusher-proxy-service   # Check service status

4. Setting proxy in Grusher

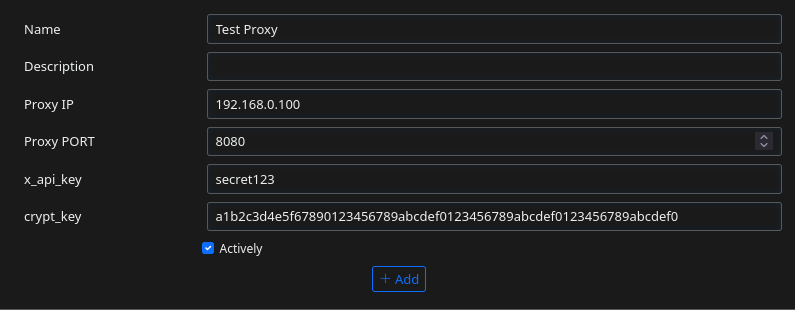

Go to http://GRUSHER_IP/system/proxies and setup like this

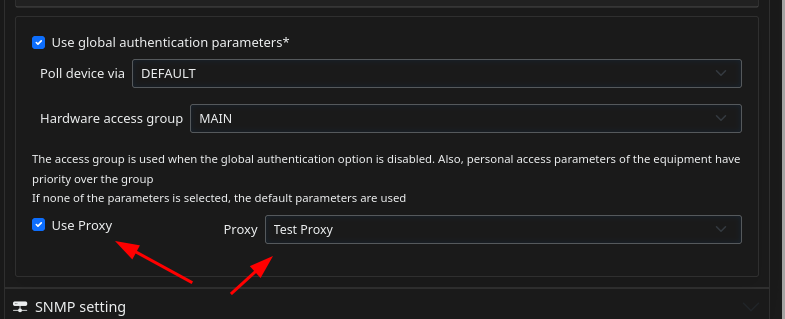

Set proxy in device card

Set your X_API_KEY

5. Setting proxy in service

Default proxy config

{
  "listen": ":8080",
  "x_api_key": "secret123",
  "shared_encryption_key": "a1b2c3d4e5f67890123456789abcdef0123456789abcdef0123456789abcdef0",
  "max_request_age": 60,
  "allowed_ips": [
    "127.0.0.1",
    "::1",
    "192.168.1.0/24"
  ],
  "rate_limit_rps": 1000,
  "burst": 20,
  "workers": 10,
  "queue_size": 1000,
  "cache_ttl": 10,
  "default_timeout": 5,
  "default_retries": 2,
  "log_file": "app.log"
}

Description

Parameter	Type	Description	Recommended Value	Note
listen	string	Address and port on which the server listens (HTTP).	":8080"	Usually :8080 or :443 (for HTTPS)
x_api_key	string	API key for request authorization. Passed in the X-API-Key header.	"secret123"	Better to rename to api_key in config
shared_encryption_key	string	32-byte key (64 hex characters) for AES-256-GCM encryption of requests and responses.	64 hex characters	Very important. Do not commit
max_request_age	integer	Maximum request age in seconds (protection against replay attacks). Requests older than this are rejected.	60	Recommended range: 30–120 seconds
allowed_ips	array	List of allowed IP addresses or subnets (supports CIDR notation).	["127.0.0.1", "192.168.1.0/24"]	Very important for security
rate_limit_rps	integer	Maximum number of requests per second (Rate Limit).	30 – 100	Increase for heavy polling
burst	integer	Maximum number of requests that can be made in a short burst.	50 – 100	Usually 1.5–2x higher than rate_limit_rps
workers	integer	Number of concurrent workers (goroutines) processing requests.	10 – 30	Higher = better throughput
queue_size	integer	Size of the job queue (if all workers are busy, new requests wait here).	500 – 2000	Larger value reduces rejection risk
cache_ttl	integer	Cache lifetime for responses in seconds (0 = cache disabled).	5 – 30	Useful for snmp_get, less for walks
default_timeout	integer	Default timeout for a single SNMP request (in seconds).	5 – 15	For walks, better to set 10–20
default_retries	integer	Default number of retries if an SNMP request fails.	2 – 3	Usually 2 is enough
log_file	string	Path to the log file. If empty - logs go to console.	"app.log"	Recommended to specify

For heavy polling (many ports), increase rate_limit_rps, burst, workers, and queue_size.

Download proxy

• v0.2 - Added AES-256-GCM encrypt support + replay-attack fix Download
• v0.1 - first release

Test run

Unpack to /opt/grusher_proxy/

cd /opt/grusher_proxy/
chmod +x grusher-proxy-service
./grusher-proxy-service

This setup ensures the proxy service starts automatically after system boot, restarts in case of failure, and keeps logs in the designated directory.

The new proxy module represents a major enhancement to the Grusher ecosystem, paving the way for more robust, secure, and scalable network monitoring and management.
